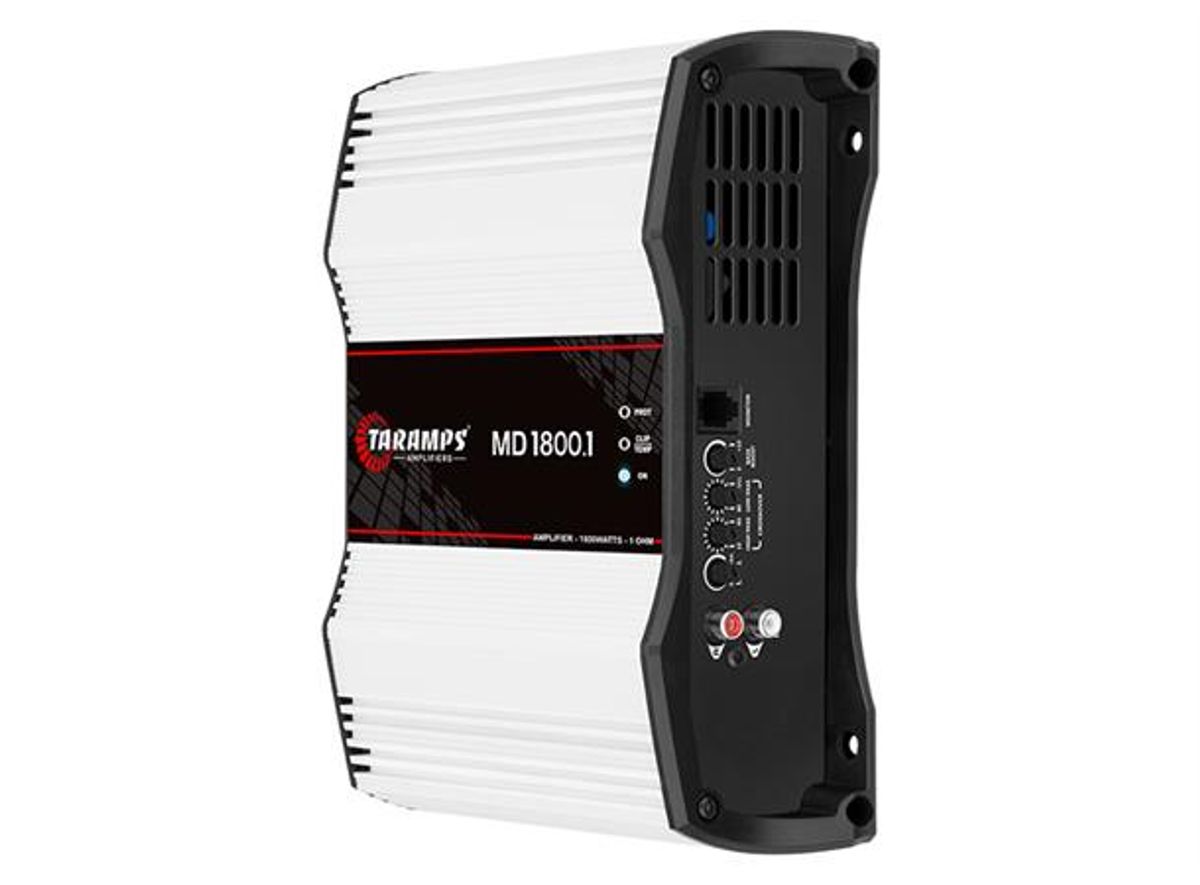

TARAMPS Bilforsterker MD 1800, 1ohm, 1x1800W
MD1800.1 forsterkeren fra Taramps ble nøye utviklet med å bruke den nyeste teknologien for stabil og høy ytelse i hele frekvensområde. Dette er altså en mono fullrange forsterker.
Den har en maksimal effekt på 1800 Watt i 1 Ohm. Forsterkeren har innebygd delefilter og en bassboost.
Spesifikasjoner:
|
Operation class |
Class D |
|---|---|
|
Number of Channels |
01 |
|
Maximum power |
@ 12.6 VDC - 1 OHM: 1800W RMS |
|
Input Sensitivity |
220 mV |
|
Signal to Noise Ratio |
>88dB |
|
Frequency Response |
10Hz ~ 20KHz (-3dB) |
|
Crossover high pass (HPF) |
10Hz ~ 80Hz (-12dB/8ª) Variable |
|
Crossover low pass (LPF) |
80Hz ~Full (-12dB/8ª) Variable |
|
bass boost |
0 ~ 10.5dB (50Hz) |
|
Thermal Management |
Smart Cooler (fan controlled by temperature or audio, with 3 speeds) |
|
Efficiency |
78% |
|
Input Impedance |
10k OHMS |
|
Output Impedance |
1 OHM |
|
protection system |
Output Short / High/Low Supply Voltage / Thermal Protection |
|
Min. Supply Voltage |
9VDC |
|
Maximum Power Supply Voltage |
16VDC |
|
Consumption at rest |
1.7 A |
|
Maximum music consumption |
91 A |
|
Maximum consumption in sinusoidal signal |
182 A |
|
Dimensions (WxHxD) |
228 x 70 x 188mm |
|
Weight |
2.18kg |
