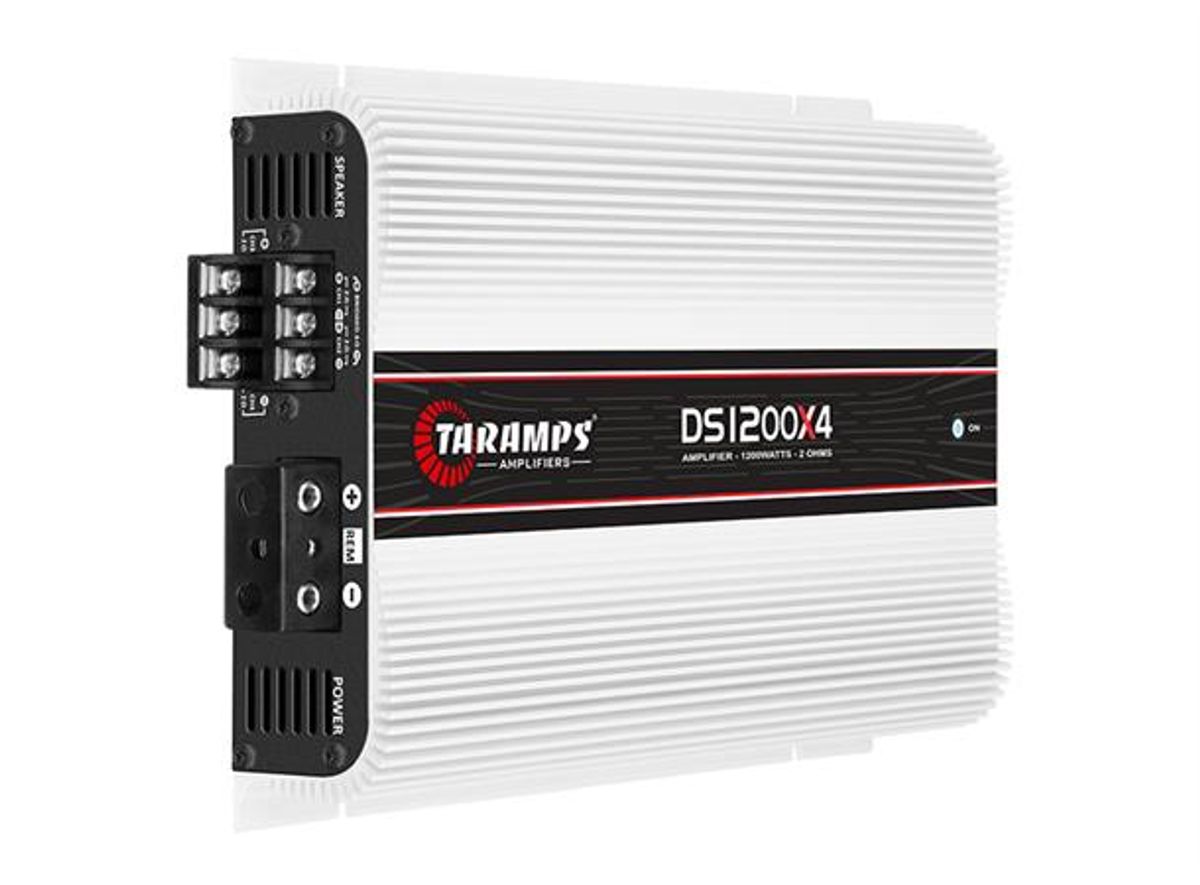

TARAMPS Bilforsterker DS 1200x4, 2ohm 4x300W
DS1200X42 er en digital 4 kanals forsterker på hele 300 Watt RMS pr kanal i 2 Ohm.
Spesifikasjoner:
|
Operation class |
D |
|---|---|
|
Number of Channels |
04 |
|
Maximum power |
@ 12.6 VDC - 2 OHMS: 1200W RMS (4 x 300W RMS) |
|
Input Sensitivity |
250mV |
|
Signal to Noise Ratio |
>88dB |
|
Frequency Response |
9Hz to 27KHz (-3dB) |
|
Crossover high pass (HPF) |
90Hz (-12dB/8a) Fixed |
|
Crossover low pass (LPF) |
90Hz (-12dB/8a) Fixed |
|
Input Impedance |
18K Ohms |
|
Output Impedance |
2 Ohms |
|
protection system |
Output overload |
|
Min. Supply Voltage |
9VDC |
|
Maximum Power Supply Voltage |
16VDC |
|
Consumption at rest |
1.8A |
|
Maximum music consumption |
@12.6VDC 67.5A |
|
Maximum consumption in sinusoidal signal |
135A |
|
Dimensions (WxHxD) |
182 x 52 x 281mm |
|
Weight |
2,1kg |
